FHPK4WC080V0Z0D0N
F1A140042
| Quantity: | |
|---|---|

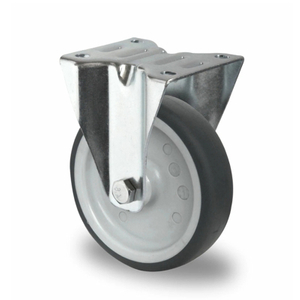

Galvanized sheet steel housing,screwing by plate with hole pattern 80/75 x 60/55/48mm,housing with material strength 4.0mm (fitting) and 4.0mm (fork),clearance between the fork 48mm,wheel rim made of polyamide with a tread made of polyamide white colored,hub width 47mm,central double precision ball bearing,screwed wheel axle(incl. all axle material).
| Wheel diameter: | 100 mm |
| Wheel width: | 37 mm |
| Mounting plate: | 100 x 85 mm |
| Mounting hole dimension: | 80/75 x 60/55/48 mm |
| Hole diameter: | 9.2 mm |
| Plate thickness: | 4.0 mm |
| Fork thickness: | 4.0 mm |
| Axle bolt: | 10 mm |
| Hub width: | 47 mm |
| Total height: | 120 mm |
| Wheel center: | polyamide white |
| Wheel tread: | polyamide white |
| Wheel bearing: | double precision ball bearing |
| Thread guard: | without threadguard |
| Temperature range: | -20°C to + 80°C |
| DIN EN Norm: | DIN EN 12532 |
| Load capacity: | 350 kg |
| Unit weight: |
