In industrial, commercial, and medical settings, the movement of heavy equipment, racks, or machines is routine. But not all mobility systems are created equal—especially when it comes to high load capacities. Castors (or casters), those simple wheel-and-mount assemblies, are critical in safely transporting hefty loads. When equipped with reliable braking systems, high-load-capacity castors do more than move objects—they ensure safety, stability, and long-term functionality.
Imagine trying to transport a 1000 kg machine over smooth concrete without a braking mechanism. Not only could the machine become uncontrollable, but it could also cause injury or equipment damage. Therefore, selecting the right type of castor isn't just about convenience; it’s a matter of operational safety.
High load capacity refers to the maximum weight that a single castor or a set of castors can support without failure. Typically measured in kilograms or pounds, it accounts for both static and dynamic loads. Static loads are weights when the equipment is stationary, while dynamic loads involve movement, vibration, and impact.
For example, if a single castor is rated for 500 kg and you're using four, the total weight capacity is ideally 2000 kg. However, this assumes evenly distributed loads, ideal surface conditions, and uniform wheel wear—all of which are rare in practical scenarios.
In real-life applications, engineers recommend using only about 80% of the stated maximum load capacity to account for shifting weights and uneven flooring. Therefore, understanding the load rating is just one part of the equation; choosing castors with a safety margin is vital.
When transporting or parking heavy machinery, the last thing you want is unwanted rolling or shifting. That’s where brakes become indispensable. Braking systems are generally of three types:

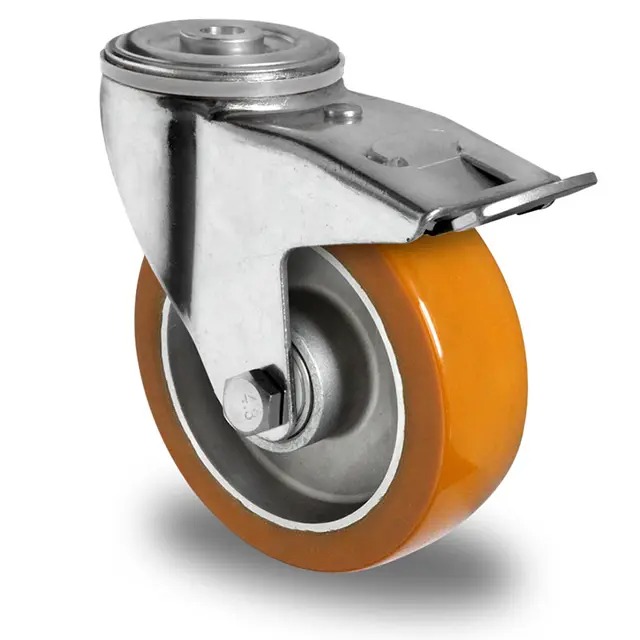

Total Lock Brakes – lock both the wheel and swivel head
Directional Lock Brakes – lock only the swivel, useful for guiding straight lines
Wheel Brakes – lock only the wheel to prevent rolling
For high load capacities, total lock brakes are most effective. They prevent both rotational and directional movement, providing maximum stability. Whether on sloped floors or during loading/unloading, these brakes ensure that heavy objects remain exactly where they should be.
Brakes also reduce the risks associated with workplace accidents, including tip-overs, foot injuries, and equipment damage. OSHA and workplace safety standards often recommend or require braking mechanisms for mobile equipment above certain weights.
Not all castors are built the same, and material choice is directly tied to load capacity. The main parts to evaluate include:
| Component | Material Options | Best for High Load |
|---|---|---|
| Wheel Core | Steel, Aluminum, Polyolefin | Steel |
| Tread | Polyurethane, Rubber, Nylon | Polyurethane (for durability + traction) |
| Fork Frame | Mild Steel, Stainless Steel, Forged Steel | Forged Steel |
| Brake Lever | Pressed Steel, Alloy | Alloy or Forged Components |
High load capacity castors often feature forged steel forks and polyurethane treads on steel cores, balancing strength with quiet operation. Polyurethane also resists oil, grease, and mild chemicals, making it ideal for industrial environments.
Bearings are another critical factor. Roller or tapered bearings distribute the load more efficiently, reducing wear and enabling smoother rotation under pressure.
To choose the best high-load-capacity castors with brakes, ask yourself:
What is the maximum weight per unit?
What type of flooring will the castors roll on?
Will the equipment remain stationary for long periods?
Is the environment corrosive, wet, or oily?
For instance, in a food processing facility, stainless steel castors with high-temp polyurethane treads and water-resistant brakes may be required. In contrast, a warehouse application may benefit from larger-diameter wheels with total lock brakes for pallets or racks.
Also, consider maneuverability. The heavier the equipment, the more difficult it becomes to steer without directional brakes. In high-traffic areas, using swivel castors with both directional and total lock brakes ensures ease of use without compromising safety.
Heavy-duty castors are an investment, and like any machinery, they require upkeep. Here’s a routine maintenance checklist:
Inspect brakes monthly – Ensure they engage fully and hold under load.
Lubricate bearings – Use grease rated for high-pressure and temperature.
Check for tread wear – Uneven wear may indicate alignment issues.
Tighten mounting bolts – Loose fasteners can reduce load integrity.
Replace worn-out components – Don’t wait for failure; be proactive.
Routine inspection can prevent breakdowns and extend the operational life of castors. Also, maintain a log of inspections for compliance with workplace safety standards.
Q1: Can I use high-load castors on uneven flooring?
Yes, but ensure the wheels have shock-absorbing treads and that the mounting system can tolerate vibrations and impact.
Q2: What’s the difference between dynamic and static load capacity?
Static refers to weight when equipment is stationary; dynamic includes movement. Always choose a castor rated higher than your expected dynamic load.
Q3: Are brakes necessary if the load is stationary most of the time?
Yes, especially in environments where unintentional movement could pose a hazard due to slope, vibration, or human error.
Q4: What is the ideal wheel diameter for heavy-duty applications?
Generally, the larger the wheel diameter, the easier it is to roll under heavy loads. For high load capacities, 150mm to 300mm wheels are common.
When it comes to moving heavy equipment, high load capacity castors with brakes offer unmatched benefits in terms of safety, reliability, and performance. By carefully selecting the right materials, brake types, and wheel designs based on your application, you ensure not just easier movement—but a safer and more efficient workplace. Make no mistake: the right castors aren’t just accessories—they are foundational to operational success.
