FPP55WC200P2V2R1W
22222222
| Quantity: | |
|---|---|

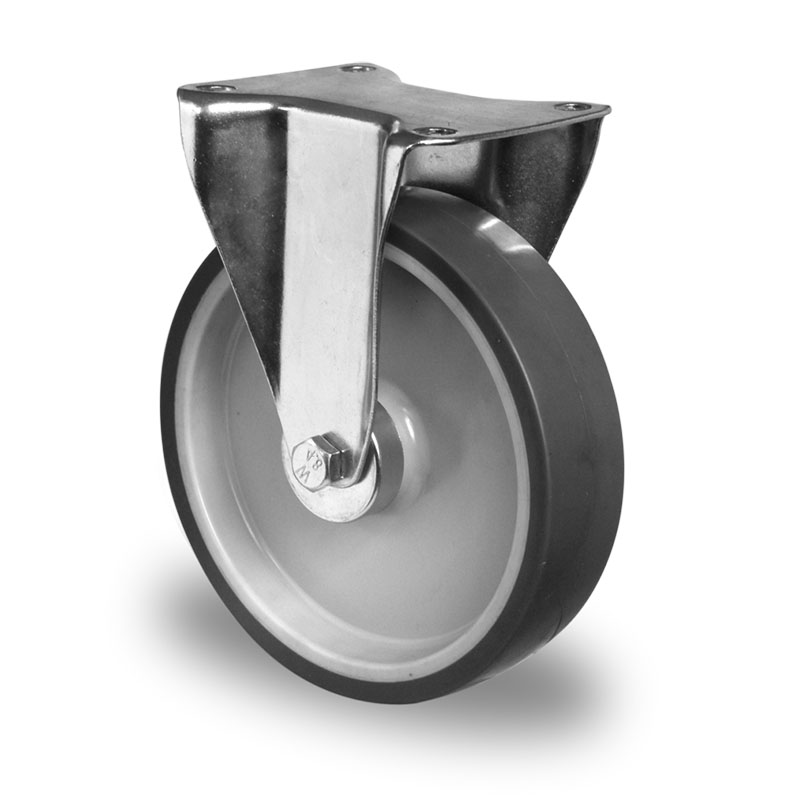

Galvanized sheet steel housing,screwing by plate with hole pattern 105 x 84/76mm,housing with material strength 2.5mm (fitting) and 2.5mm (fork),clearance between the fork 60mm,wheel rim made of polypropylene grey with a tread made of thermoplastic rubber grey colored,hub width 59mm,central roller bearing,screwed wheel axle(incl. all axle material).
| Wheel diameter: | 200 mm |
| Wheel width: | 48 mm |
| Mounting plate: | 135 x 110 mm |
| Mounting hole dimension: | 105 x 84/76 mm |
| Hole diameter: | 11 mm |
| Plate thickness: | 2.5 mm |
| Fork thickness: | 2.5 mm |
| Axle bolt: | 12 mm |
| Hub width: | 59 mm |
| Total height: | 235 mm |
| Wheel center: | polypropylene grey |
| Wheel tread: | thermoplastic rubber(85°shore A) grey |
| Wheel bearing: | roller bearing |
| Thread guard: | small metal threadguard |
| Temperature range: | -20°C to + 60°C |
| DIN EN Norm: | DIN EN 12532 |
| Load capacity: | 200 kg |
| Unit weight: |
Galvanized sheet steel housing,screwing by plate with hole pattern 105 x 84/76mm,housing with material strength 2.5mm (fitting) and 2.5mm (fork),clearance between the fork 60mm,wheel rim made of polypropylene grey with a tread made of thermoplastic rubber grey colored,hub width 59mm,central roller bearing,screwed wheel axle(incl. all axle material).
| Wheel diameter: | 200 mm |
| Wheel width: | 48 mm |
| Mounting plate: | 135 x 110 mm |
| Mounting hole dimension: | 105 x 84/76 mm |
| Hole diameter: | 11 mm |
| Plate thickness: | 2.5 mm |
| Fork thickness: | 2.5 mm |
| Axle bolt: | 12 mm |
| Hub width: | 59 mm |
| Total height: | 235 mm |
| Wheel center: | polypropylene grey |
| Wheel tread: | thermoplastic rubber(85°shore A) grey |
| Wheel bearing: | roller bearing |
| Thread guard: | small metal threadguard |
| Temperature range: | -20°C to + 60°C |
| DIN EN Norm: | DIN EN 12532 |
| Load capacity: | 200 kg |
| Unit weight: |
