BAH1QSC075P2T2L0N
22222222
| Quantity: | |
|---|---|

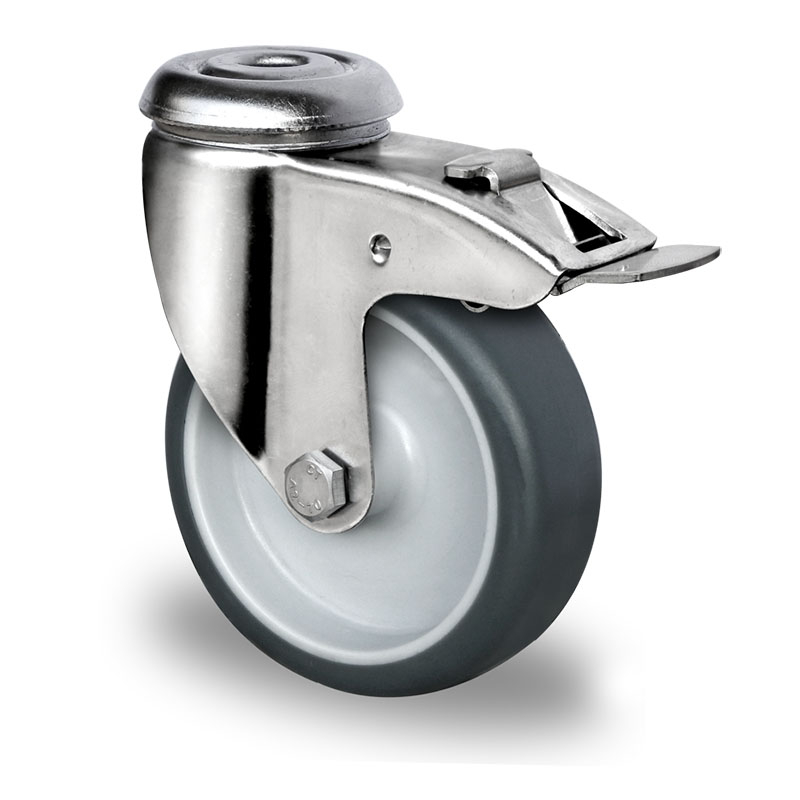

Stainless steel housing,pivot bearing with a double ball race,screwing by bolt hole ø 11 mm,housing with material thickness 1.80mm (fitting) and 1.50mm (fork),clearance between the fork 28mm,wheel rim made of polypropylene grey with a tread made of thermoplastic rubber 95°shore A grey colored,hub width 28mm,central plain bearing stainless steel,screwed wheel axle(incl. all axle material).
| Wheel diameter: | 75 mm |
| Wheel width: | 25 mm |
| Mounting hole dimension: | 11 mm |
| Plate thickness: | 1.8 mm |
| Fork thickness: | 1.5 mm |
| Axle bolt: | 6 mm |
| Hub width: | 28 mm |
| Total height: | 100 mm |
| Wheel center: | polypropylene grey |
| Wheel tread: | thermoplastic rubber(95°shore A) grey |
| Wheel bearing: | plain bearing stainless steel |
| Thread guard: | without threadguard |
| Temperature range: | -20°C to + 60°C |
| DIN EN Norm: | DIN EN 12530 |
| Load capacity: | 75 kg |
| Unit weight: | 0.22 kg |
Stainless steel housing,pivot bearing with a double ball race,screwing by bolt hole ø 11 mm,housing with material thickness 1.80mm (fitting) and 1.50mm (fork),clearance between the fork 28mm,wheel rim made of polypropylene grey with a tread made of thermoplastic rubber 95°shore A grey colored,hub width 28mm,central plain bearing stainless steel,screwed wheel axle(incl. all axle material).
| Wheel diameter: | 75 mm |
| Wheel width: | 25 mm |
| Mounting hole dimension: | 11 mm |
| Plate thickness: | 1.8 mm |
| Fork thickness: | 1.5 mm |
| Axle bolt: | 6 mm |
| Hub width: | 28 mm |
| Total height: | 100 mm |
| Wheel center: | polypropylene grey |
| Wheel tread: | thermoplastic rubber(95°shore A) grey |
| Wheel bearing: | plain bearing stainless steel |
| Thread guard: | without threadguard |
| Temperature range: | -20°C to + 60°C |
| DIN EN Norm: | DIN EN 12530 |
| Load capacity: | 75 kg |
| Unit weight: | 0.22 kg |
