HBH98WC200P0P0P0N
22222222
| Quantity: | |
|---|---|

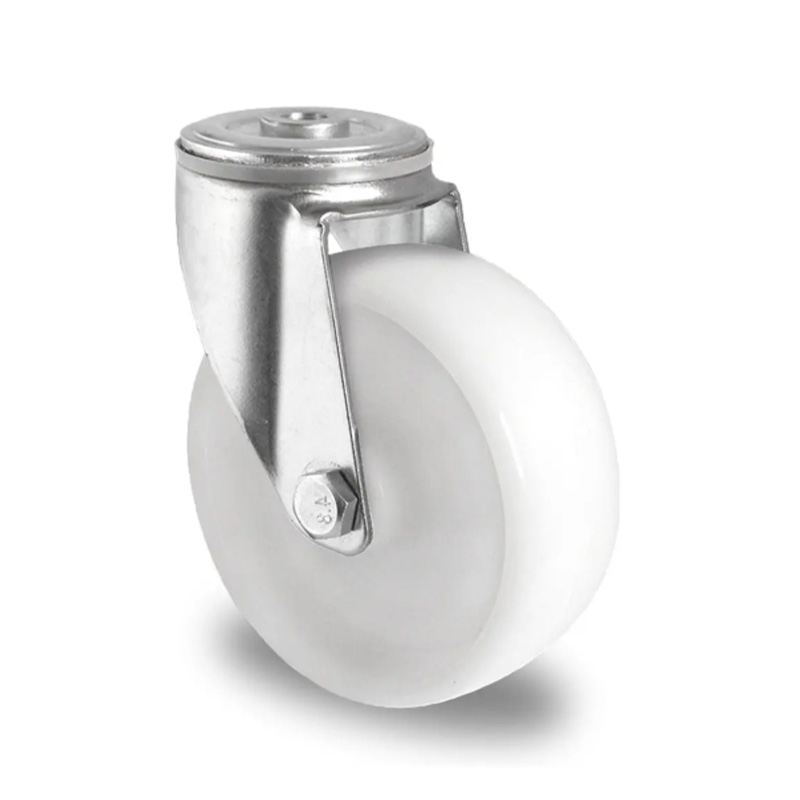

Galvanized sheet steel housing,pivot bearing with a double ball race,bolt hole fitting by bolt hole Ø 13 mm,housing with material strength 2.5mm (fitting) and 2.5mm (fork),clearance between the fork 60mm,wheel rim made of polypropylene with a tread made of polypropylene white colored,hub width 50mm,central plain bearing,screwed wheel axle(incl. all axle material).
| Wheel diameter: | 200 mm |
| Wheel width: | 50 mm |
| Mounting hole dimension: | 13 mm |
| Plate thickness: | 3.5 mm |
| Fork thickness: | 3.0 mm |
| Axle bolt: | 12 mm |
| Hub width: | 59 mm |
| Total height: | 228 mm |
| Wheel center: | polypropylene |
| Wheel tread: | polypropylene |
| Wheel bearing: | plain bearing |
| Thread guard: | without threadguard |
| Temperature range: | -20°C to + 60°C |
| DIN EN Norm: | DIN EN 12532 |
| Load capacity: | 250 kg |
| Unit weight: |
